FAW Xichai 22kw Soundproof Canopy Open Silent Diesel Generator with Perkins Cummins Deutz Yanmar Diesel Power Generator Set

Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • Self-Starting Diesel Generator

  • Fixed

  • Four Stroke

  • Water Cooling

  • AC Three Phase

  • Speed

  • BS-FW28

  • Land Use

  • Common Units, Standby Unit, Emergency Crew

  • Low Noise

  • AC Rotating Exciter

  • Fawde Xichai

  • Stamford

  • Smartgen, Deepsea...

  • Electric Start

  • 22kw

  • Optional

  • as Per Request

  • 50Hz

  • 400V 380V

  • Packed in Plywood Cases or Wooden Cases or Foam, E

  • As for power

  • BOSSPOWER

  • China

  • 85021100

  • 100 Sets / Month

  • US$ 3500/Piece 1 Piece(Min.Order) | Request Sample

FAW Xichai 22kw Soundproof Canopy Open Silent Diesel Generator with Perkins Cummins Deutz Yanmar Diesel Power Generator Set
PRODUCT DESCRIPTION
Frequency: 50HZ;Rotating speed: 1500Rpm
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Stamford Type
BS-FW16 12.8 16 23.1 4DW81-23D BS164D
BS-FW23 18 22.5 32.5 4DW91-29D BS184E
BS-FW28 22 27.5 39.7 4DW92-35D BS184F
BS-FW30 24 30 43.3 4DW92-39D BS184G
BS-FW35 28 35 50.5 4DX21-45D BS184H
BS-FW40 32 40 57.7 4DX21-53D BS184H
BS-FW50 40 50 72.2 4DX22-65D BS224D
BS-FW63 50 62.5 90.2 4DX23-78D BS224E
BS-FW73 58 72.5 104.6 4110/125Z-09D BS224F
BS-FW94 75 94 135.3 CA4DF2-12D BS224G
BS-FW100 80 100 144.3 CA6DF2D-14D BS274C
BS-FW125 100 125 180.4 CA6DF2-17D BS274D
BS-FW150 120 150 216.5 CA6DF2-19D BS274F
BS-FW181 160 181 288.7 CA6DL1-24D BS274H
BS-FW225 180 225 324.8 CA6DL2-27D BS274J
BS-FW250 200 250 360.9 CA6DL2-30D BS274K
BS-FW300 240 300 433.0 CA6DM2J-39D BS314D
BS-FW300 240 300 433.0 CA6DM2-39D BS314D
BS-FW325 260 325 469.1 CA6DM2J-41D BS314E
BS-FW325 260 325 469.1 CA6DM2-41D BS314E
BS-FW375 300 375 541.3 CA6DN1J-45D BS314FS
BS-FW375 300 375 541.3 CA6DN1-45D BS314FS
Frequency: 60HZ;Rotating speed: 1800Rpm
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Stamford Type
BS-FW19 15 19 27.1 4DW81-28D BS164D
BS-FW28 22 27.5 39.7 4DW91-38D BS184E
BS-FW31 25 31 45.1 4DW92-42D BS184F
BS-FW38 30 37.5 54.1 4DW92-45D BS184G
BS-FW40 32 40 57.7 4DX21-53D BS184G
BS-FW45 36 45 65.0 4DX21-61D BS184H
BS-FW60 48 60 86.6 4DX23-82D BS224D
BS-FW66 53 66.3 95.6 4DX23-90D BS224E
BS-FW81 65 81 117.3 4110/125Z-11D BS224F
BS-FW106 85 106 153.4 CA4DF2-14D BS274C
BS-FW119 95 119 171.4 CA6DF2D-16D BS274C
BS-FW138 110 138 198.5 CA6DF2-18D BS274D
BS-FW163 130 163 234.6 CA6DF2-21D BS274E
BS-FW206 165 206 297.7 CA6DL1-27D BS274G
BS-FW250 200 250 360.9 CA6DL2-32D BS274J
BS-FW338 270 338 487.2 CA6DM2-42D BS314D
BS-FW375 300 375 541.3 CA6DN1-46D BS314ES

More specific parameters to choose.
GENSET MODEL BS-FW28
Rated Output (KW/KVA) 22KW/27.5KVA
Max Output (KW/KVA) 24.2KW/30KVA
Phase 3
Power Factor (cos Ø) 0.8
Rated Voltage (V) 50HZ/1500RPM,400V
Rated Current (A) 39.7A
Silent Genset Dimensions (MM)--N.W(KGS) 1800*850*980--680KGS
ENGINE Model 4DW92-35D
Type In-line, four-cylinder, four-stroke
Aspiration Supercharged
Cooling mode Water-cooling
12h Power (KW/KVA) 26KW/32.5KVA
1hour Power (KW/KVA) 29KW/36KVA
Bore×Stroke (MM×MM) 90x100
Displacement(L) 2.545
Compression Ratio 17.5:1
Fuel system Mechanical
Lubricating oil capacity(with filter) (L) 8L
Lubricating oil consumption(L/h) 0.05
Fuel Consumption(g/kw.h) ≤230
Air consumption (m3/min) 2.2
Permissible max. air intake
resistance (kPa)		 3.7
Amount of exhaust emission
(m3/min)		 6.4
Exhaust temperature after
turbine (ºC)		 450
Starting Type Electric starting/12V
ALTERNATOR Type Copy Stamford-BS184F
Rated Output (KW/KVA) 22KW/27.5KVA
Max Output (KW/KVA) 24.2KW/30KVA
Power Factor (cos Ø) 0.8
Excitation Mode single-bearing with SAE ,Brushless synchronous ,Three harmonic exciting
AVR Model SX460
Insulation Class H CLASS
IP Level (PROTECTION) IP23

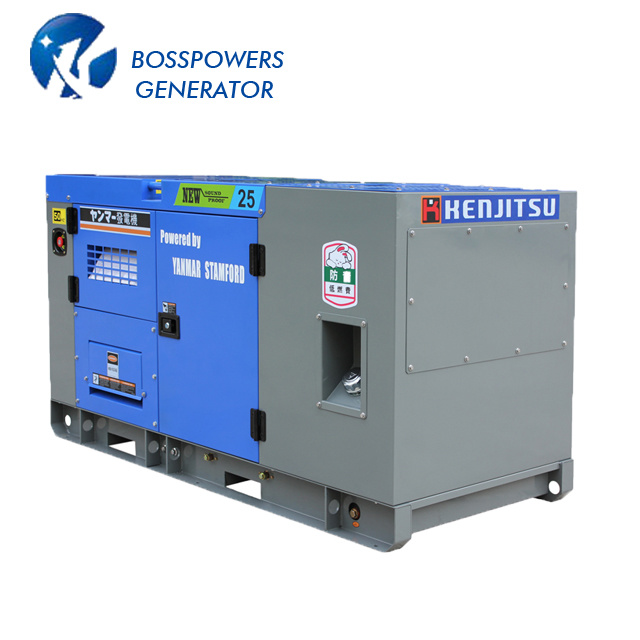

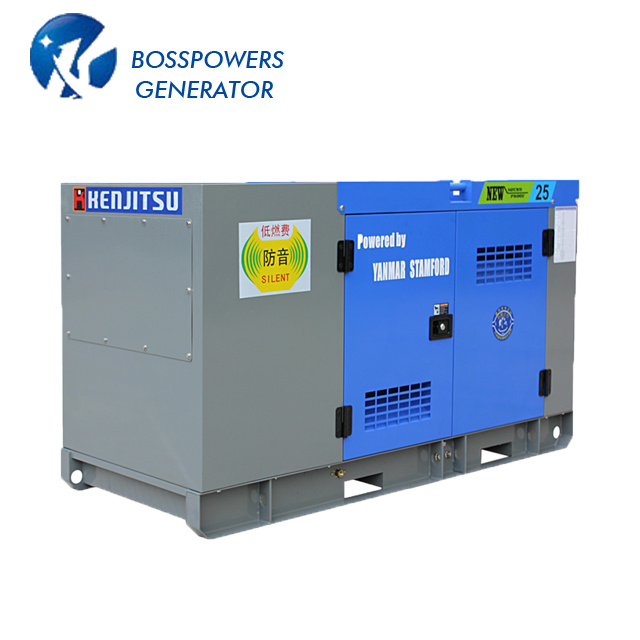

PRODUCT SHOWS

FAW Xichai 22kw Soundproof Canopy Open Silent Diesel Generator with Perkins Cummins Deutz Yanmar Diesel Power Generator Set
PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

FAW Xichai 22kw Soundproof Canopy Open Silent Diesel Generator with Perkins Cummins Deutz Yanmar Diesel Power Generator Set
FAW Xichai 22kw Soundproof Canopy Open Silent Diesel Generator with Perkins Cummins Deutz Yanmar Diesel Power Generator Set FAW Xichai 22kw Soundproof Canopy Open Silent Diesel Generator with Perkins Cummins Deutz Yanmar Diesel Power Generator Set
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
