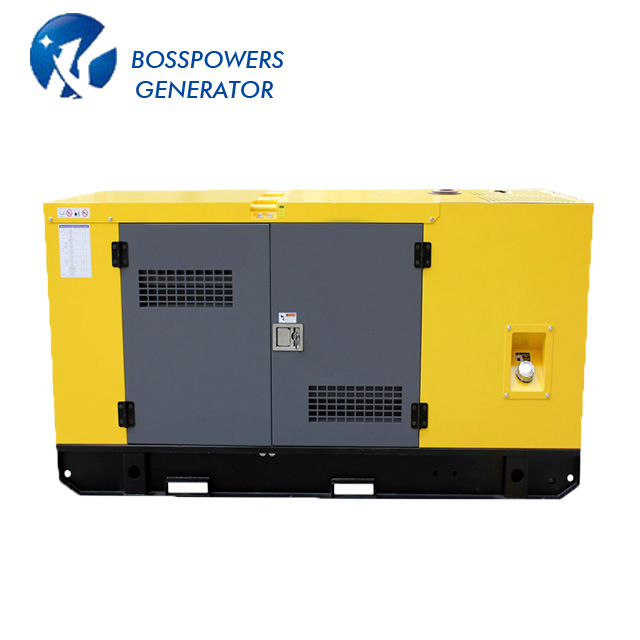

The Latest Auto Start Amf ATS Silent Diesel Generator 34kw Lovol Generator Electric

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-L43
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Lovol
Alternator:
Stamford
Controller:
Smartgen,Deepsea...
Starting Method:
Electric Start
Power:
22kw - 163kw
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz/60Hz
Voltage:
400V 380V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021100
Production Capacity:
100 Sets / Month
Samples:
US$ 5000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-L28	22	27.5	39.7	1003G	BS184F
BS-L30	24	30	43.3	1003G	BS184G
BS-L45	36	45	64.9	1003TG	BS184J
BS-L50	40	50	72.2	1004TG	BS224D
BS-L63	50	63	90.2	1004TG	BS224E
BS-L73	58	73	104.6	1004TG	BS224F
BS-L88	70	88	126.3	1006TG1A	BS224G
BS-L100	80	100	144.3	1006TG2A	BS274C
BS-L113	90	112.5	162.4	1006TAG1A	BS274D
BS-L140	112	140	202	1006TAG	BS274E
BS-L150	120	150	216.5	1106C-P6TAG2	BS274F
BS-L163	130	162.5	234.6	1106C-P6TAG3	BS274F
BS-L183	146	182.5	263.4	1106C-P6TAG4	BS274G

Frequency: 60HZ;Rotating speed: 1800Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-L28	22	27.5	39.7	1003G	184E
BS-L33	26	32.5	46.9	1003G	184F
BS-L44	35	44	63	1003TG	184H
BS-L50	40	50	72	1003TG	224C
BS-L73	58	72.5	104.6	1004TG	224E
BS-L85	68	85	122.7	1004TG	224F
BS-L110	88	110	158.8	1006TG1A	274C
BS-L123	98	122.5	176.8	1006TG2A	274D
BS-L150	120	150	216.5	1006TAG	274E
BS-L169	135	169	243.6	1106C-P6TAG2	274E
BS-L188	150	188	270.6	1106C-P6TAG3	274F
BS-L204	163	204	294	1106C-P6TAG4	274G

More specific parameters to choose.

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

The Latest Auto Start Amf ATS Silent Diesel Generator 34kw Lovol Generator Electric

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
