Ce ISO Approved 16kw 20kVA Diesel Yangdong Generator

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-YD series
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Yangdong Ynd490d
Alternator:
Stamford Type
Controller:
Smartgen,Deepsea...
Starting Method:
Electric Start
Power:
15kw
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz
Voltage:
400V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021100
Production Capacity:
100 Sets / Month
Samples:
US$ 3000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Stamford Type
BS-YD10	8	10	14.4	YD380D	BS164B
BS-YD11	9	11	16.2	YD385D	BS164B
BS-YD13	10	12.5	18.0	YD480D	BS164C
BS-YD15	12	15	21.7	YD4KD	BS164D
BS-YD16	13	16	23.5	YND485D	BS164D
BS-YD19	15	19	27.1	YND490D	BS184ES
BS-YD20	16	20	28.9	YSD490D	BS184E
BS-YD24	19	24	34.3	Y490PD	BS184E
BS-YD25	20	25	36.1	Y495D	BS184F
BS-YD30	24	30	43.3	Y4100D	BS184G
BS-YD31	25	31	45.1	Y4102D	BS184G
BS-YD38	30	37.5	54.1	Y4105D	BS184H
BS-YD40	32	40	57.7	Y4102ZD	BS184J

Frequency: 60HZ;Rotating speed: 1800Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Stamford Type
BS-YD12	9.6	12	17.3	YD380D	BS164B
BS-YD13	10	12.5	18.0	YD385D	BS164B
BS-YD16	13	16.3	23.5	YD480D	BS164C
BS-YD19	15	18.8	27.1	YD4KD	BS164D
BS-YD20	16	20	28.9	YND485D	BS164D
BS-YD24	19	23.8	34.3	YND490D	BS184E
BS-YD25	20	25	36.1	YSD490D	BS184E
BS-YD26	21	26.3	37.9	Y490PD	BS184E
BS-YD30	24	30	43.3	Y495D	BS184F
BS-YD35	28	35	50.5	Y4100D	BS184F
BS-YD40	32	40	57.7	Y4102D	BS184H
BS-YD45	36	45	65.0	Y4105D	BS184H
BS-YD48	38	47.5	68.6	Y4102ZD	BS184J
BS-YD53	42	52.5	75.8	Y4102ZLD	BS224C
BS-YD56	45	56.3	81.2	Y4105ZLD	BS224D

More specific parameters to choose.

Genset Model		BS-YD19
Rated Output (KW/KVA)		15KW/19KVA
Max Output (KW/KVA)		16.5KW/20.5KVA
Phase		3
Power Factor (cos Ø)		0.8
Frequency		50HZ/1500RPM
Rated Voltage (V)		400V
Rated Current (A)		27A
Silent Genset Dimensions (MM)--N.W(KGS)		1650800950--600KGS
Engine	Model	YND490D
	Type	4-cycle, direct injection, Vertical, Water cooling
	Cylinder Numbers	4-cylinder
	Rated Power (KW/KVA)	20KW/25KVA
	Air intake type	Natural Aspiration
	Displacement(L)	2.417
	Compression Ratio	18:1
	Firing order	1-3-4-2
	Fuel Consumption(g/kw.h)	≤246
	Starting Type	Electric starting
	Bore×Stroke (MM×MM)	90x95
Fuel injection pump	Type	BQ pump
	Governor	All-speed, mechanical centrifugal
	Fuel delivery pump	Single-acting piston-type
Fuel injector	Model	S Series
	Diameter of nozzle hole (mm)	Ø0.23
	Injection pressure ( Mpa)	19.6±1
Fuel filter	Type	Single stage, paper element
Fuel filter	Model	CXZ0708A
Lube pump	Model	Rotor type
	Speed(r/min)	1500
	Capacity(L/min)	37.5
	Pressure (Kpa)	400
Lube oil filter	Type	Single stage, paper element
Lube oil filter	Model	JX0810
Water pump	Model	Centrifugal, Volute, Single-suction
	Speed(r/min)	4000
	Capacity(L/min)	270
	Type	Silicon rectifying shunt dynamo
Alternator Assy	Model	JFWZ13
	Voltage(V)	14
	Power (W)	350
Starting Motor	Model	QDJ1329D
	Voltage(V)	12
	Power(KW)	3.5
Alternator	Type	Copy Stamford-BS184ES
	Rated Output (KW/KVA)	15KW/19KVA
	Max Output (KW/KVA)	16.5KW/20.5KVA
	Power Factor (cos Ø)	0.8
	Excitation Mode	single-bearing with SAE ,Brushless synchronous ,Three harmonic exciting
	AVR Model	SX460
	Insulation Class	H CLASS
	IP Level (PROTECTION)	IP23

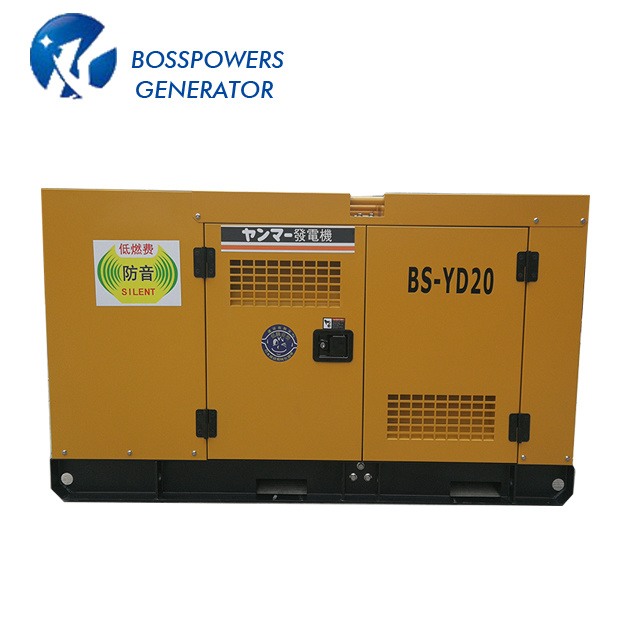

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Ce ISO Approved 16kw 20kVA Diesel Yangdong Generator

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
